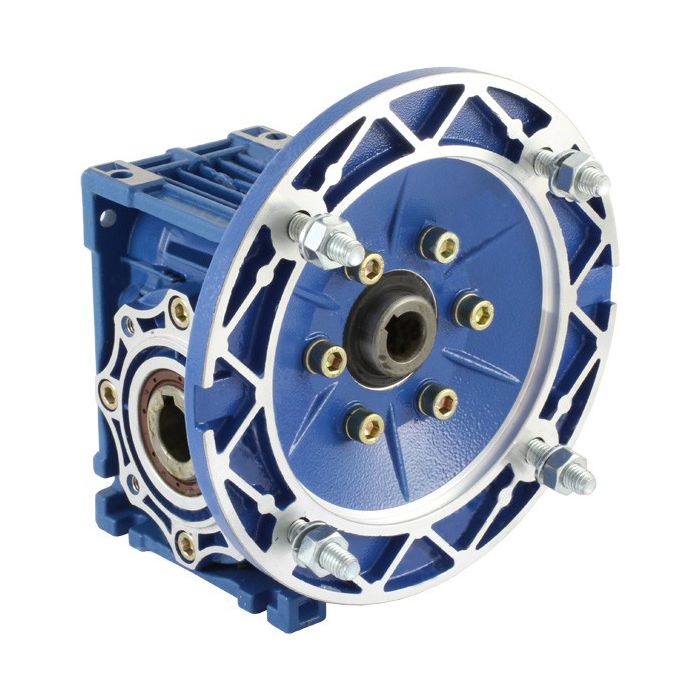

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-15:1-0.18KW-2P-63B5
Brand:
TEC Electric Motors
Gearbox Brand:
TEC FCNDK Right Angle Worm Gearbox
Gearbox Type:
Right-angle Worm
Motor Frame:
63
Motor Power:
0.18kW
Gearbox Ratio:
15:1
Output Speed:
180rpm
Maximum Torque Output:
12Nm
Product Details
TEC - 0.18kW x 180RPM 15:1 Right-Angle Worm Gearbox for 2 Pole 63 Frame B5 Motor (motor not included), type: FCNDK30
Ratio: 15:1
Output Speed: 180RPM for Input Speed at 2710RPM (50Hz)
Max Output Torque: 12Nm
Efficiency: 79%
Max Input Power: 0.3kW for 2 pole motor.
Output with 0.18kW 2 Pole Motor (motor not included), type: 0.14kW x 180RPM at 50Hz - 7.5Nm at 1.6 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 140mm flange with 4 x 9 mm holes equispaced on 115mm PCD with 95mm register.
