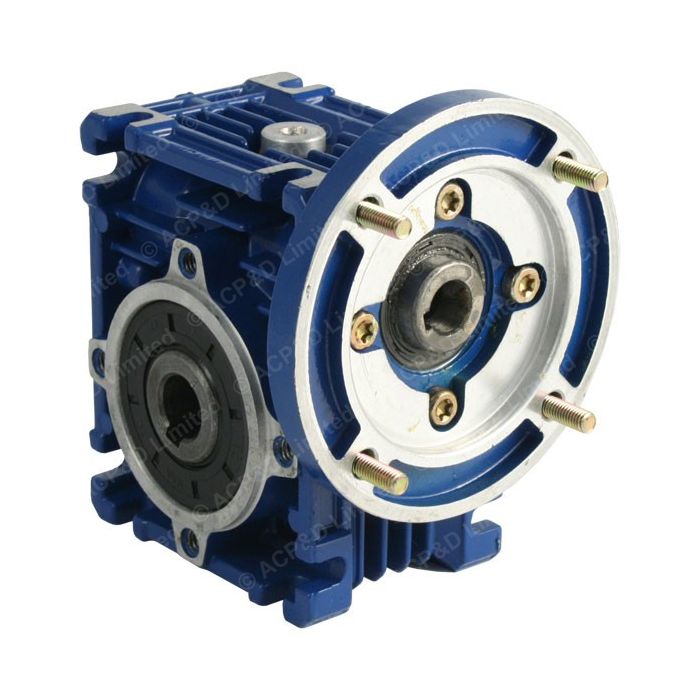

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-15:1-0.37KW-2P-63B14


Brand: TEC Electric Motors
Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox
Gearbox Type: Right-angle Worm
Motor Frame: 63
Second Motor Frame: No
Motor Power: 0.37kW
Gearbox Ratio: 15:1
Output Speed: 182rpm
Maximum Torque Output: 12Nm

Availability: In stock


Product Details

TEC - 0.37kW x 182RPM 15:1 Right-Angle Worm Gearbox for 2 Pole 63 Frame B14 Motor (motor not included), type: FCNDK30
Ratio: 15:1
Output Speed: 182RPM for Input Speed at 2730RPM (50Hz)
Max Output Torque: 12Nm
Efficiency: 79%
Max Input Power: 0.3kW for 2 pole motor.
Output with 0.37kW 2 Pole Motor (motor not included), type: 0.3kW x 182RPM at 50Hz - 15.3Nm at 0.78 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 90mm flange with 4 x M5 screws equispaced on 75mm PCD with 60mm register.
