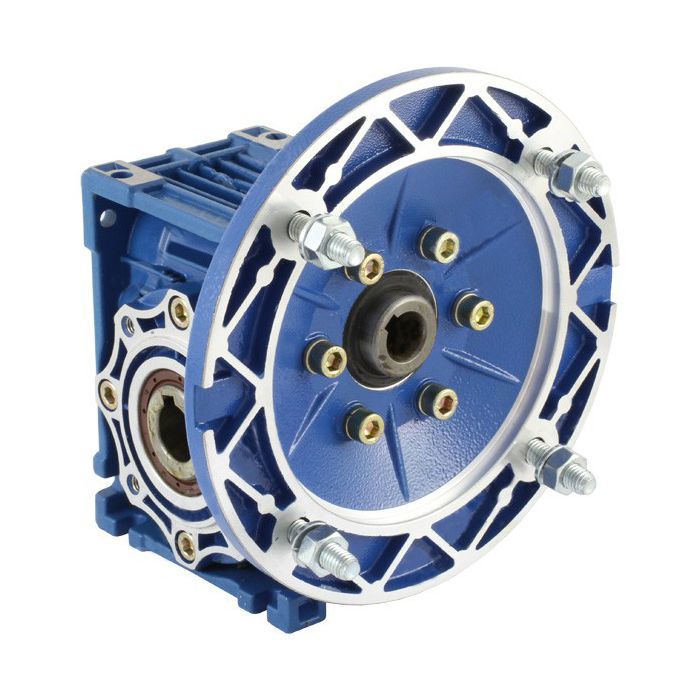

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-20:1-0.25KW-2P-63B5


Brand: TEC Electric Motors
Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox
Gearbox Type: Right-angle Worm
Motor Frame: 63
Second Motor Frame: No
Motor Power: 0.25kW
Gearbox Ratio: 20:1
Output Speed: 136rpm
Maximum Torque Output: 12Nm

Availability: In stock


Product Details

TEC - 0.25kW x 136RPM 20:1 Right-Angle Worm Gearbox for 2 Pole 63 Frame B5 Motor (motor not included), type: FCNDK30
Ratio: 20:1
Output Speed: 135.5RPM for Input Speed at 2710RPM (50Hz)
Max Output Torque: 12Nm
Efficiency: 75%
Max Input Power: 0.23kW for 2 pole motor.
Output with 0.25kW 2 Pole Motor:- 0.19kW x 135.5RPM at 50Hz - 13.2Nm at 0.9 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 140mm flange with 4 x 9 mm holes equispaced on 115mm PCD with 95mm register.
