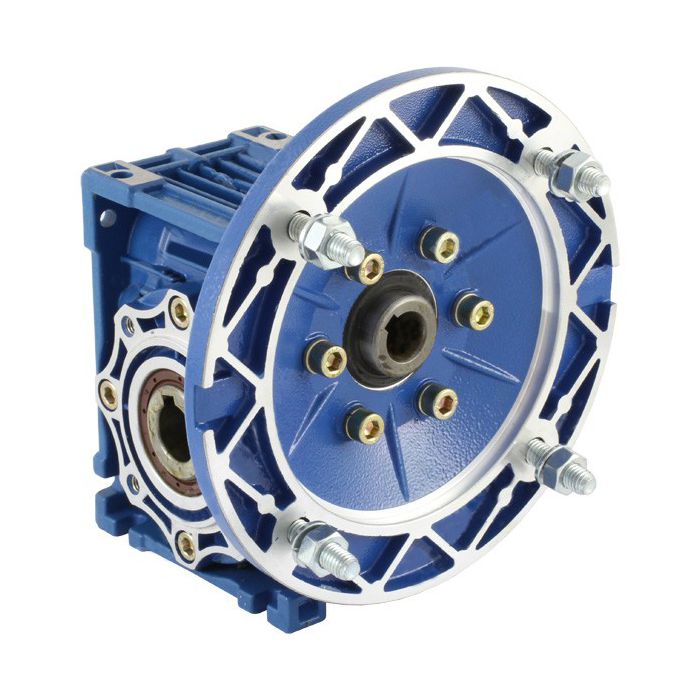

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-40:1-0.12KW-4P-63B5

Specifications

Brand: TEC Electric Motors
Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox
Gearbox Type: Right-angle Worm
Motor Frame: 63
Second Motor Frame: No
Motor Power: 0.12kW
Gearbox Ratio: 40:1
Output Speed: 34rpm
Maximum Torque Output: 18Nm

Availability: In stock

£67.14

Product Details

TEC - 0.12kW x 34RPM 40:1 Right-angle Worm Gearbox for 4 Pole 63 Frame B5 Motor (motor not included), type: FCNDK30
Ratio: 40:1
Output Speed: 34RPM for Input Speed at 1350RPM (50Hz)
Max Output Torque: 18Nm
Efficiency: 60%
Max Input Power: 0.11kW for 4 pole motor.
Output with 0.12kW 4 Pole Motor (motor not included), type: 0.07kW x 34RPM at 50Hz - 20Nm at 0.9 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 140mm flange with 4 x 9 mm holes equispaced on 115mm PCD with 95mm register.
