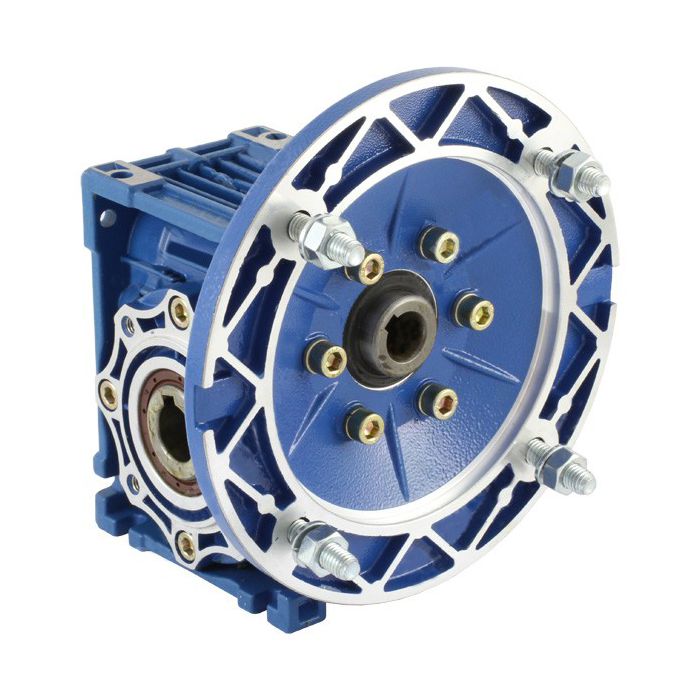

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-50:1-0.09KW-4P-56B5

Specifications

Brand: TEC Electric Motors
Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox
Gearbox Type: Right-angle Worm
Motor Frame: 56
Second Motor Frame: No
Motor Power: 0.09kW
Gearbox Ratio: 50:1
Output Speed: 27rpm
Maximum Torque Output: 17Nm

Availability: In stock

£67.14

Product Details

TEC - 0.09kW x 27RPM 50:1 Right-angle Worm Gearbox for 4 Pole 56 Frame B5 Motor (motor not included), type: FCNDK30.
Ratio: 50:1
Output Speed: 27RPM for Input Speed at 1350RPM (50Hz)
Max Output Torque: 17Nm
Efficiency: 56%
Max Input Power: 0.09kW for 4 pole motor.
Output with 0.09kW 4 Pole Motor (motor not included), type: 0.05kW x 27RPM at 50Hz - 18Nm at 0.95 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 56 Frame Motor. 9mm bore diameter, 120mm flange with 4 x 7 mm holes equispaced on 100mm PCD with 80mm register.
