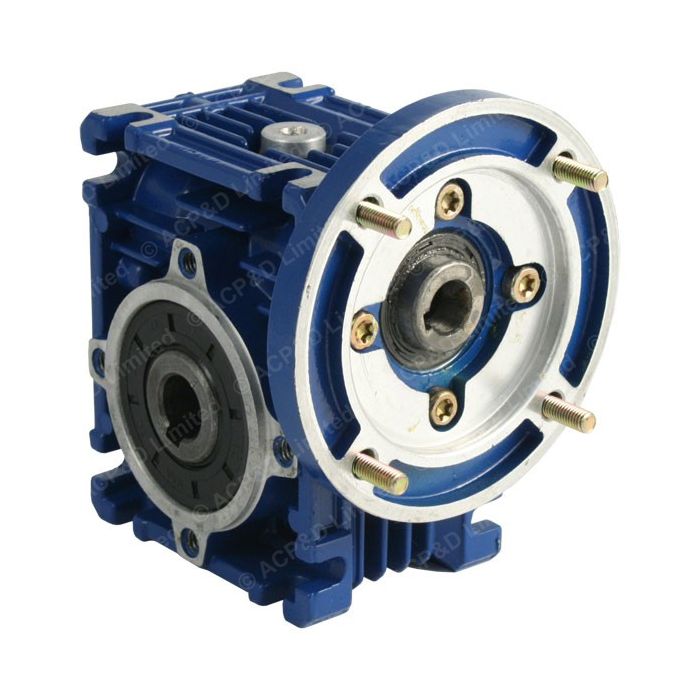

TEC FCNDK Right Angle Worm Gearbox - FCNDK25-15:1-0.09KW-4P-56B14

Be the first to review this product

Save item Add to Compare

Specifications

Brand: TEC Electric Motors

Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox

Gearbox Type: Right-angle Worm

Motor Frame: 56

Motor Power: 0.09kW

Gearbox Ratio: 15:1

Output Speed: 91rpm

Maximum Torque Output: 11Nm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Product Details

TEC - 0.09kW x 91RPM 15:1 Right-angle Worm Gearbox for 4 Pole 56 Frame B14 Motor (motor not included), type: FCNDK25 Ratio: 15:1 Output Speed: 91RPM for Input Speed at 1360RPM (50Hz) Max Output Torque: 11Nm Efficiency: 48% Max Input Power: 0.14kW for 4 pole motor. Output with 0.09kW 4 Pole Motor - 0.04kW x 91RPM at 50Hz - 11Nm at 1.0 Service Factor. Lubrication: Synthetic Oil, sealed for life and maintenance-free Input flange and shaft socket to suit IEC 56 Frame Motor. 9mm bore diameter, 80mm flange with 4 x M5 screws equispaced on 65mm PCD with 50mm register.
