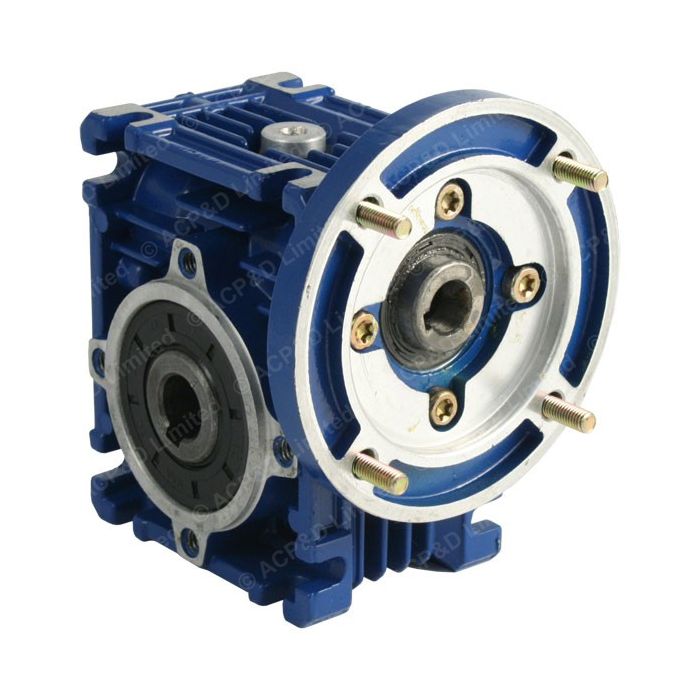

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-10:1-0.25KW-2P-63B14
Specifications
Brand:
TEC Electric Motors
Gearbox Brand:
TEC FCNDK Right Angle Worm Gearbox
Gearbox Type:
Right-angle Worm
Motor Frame:
63
Motor Power:
0.25kW
Gearbox Ratio:
10:1
Output Speed:
271rpm
Maximum Torque Output:
13Nm
Product Details
TEC - 0.25kW x 271RPM 10:1 Right-angle Worm Gearbox for 2 Pole 63 Frame B14 Motor (motor not included), type: FCNDK30
Ratio: 10:1
Output Speed: 271RPM for Input Speed at 2710RPM (50Hz)
Max Output Torque: 13Nm
Efficiency: 82%
Max Input Power: 0.45kW for 2 pole motor.
Output with 0.25kW 2 Pole Motor:- 0.2kW x 271RPM at 50Hz - 7.2Nm at 1.8 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 90mm flange with 4 x M5 screws equispaced on 75mm PCD with 60mm register.
