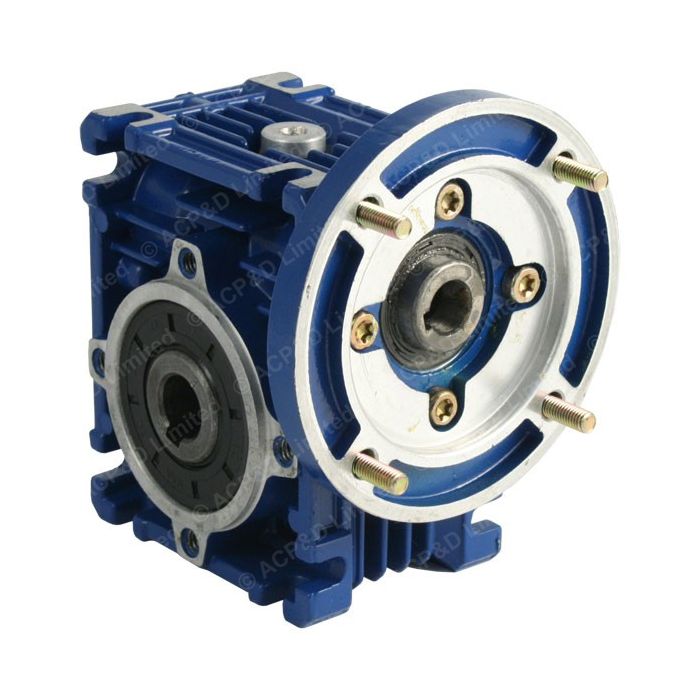

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-20:1-0.18KW-4P-63B14

Be the first to review this product

Save item Add to Compare

Specifications

Brand: TEC Electric Motors

Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox

Gearbox Type: Right-angle Worm

Motor Frame: 63

Motor Power: 0.18kW

Gearbox Ratio: 20:1

Output Speed: 68rpm

Maximum Torque Output: 18Nm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Product Details

TEC - 0.18kW x 68RPM 20:1 Right-Angle Worm Gearbox for 4 Pole 63 Frame B14 Motor (motor not included), type: FCNDK30 Ratio: 20:1 Output Speed: 68RPM for Input Speed at 1350RPM (50Hz) Max Output Torque: 18Nm Efficiency: 75% Max Input Power: 0.18kW for 4 pole motor. Output with 0.18kW 4 Pole Motor:- 0.14kW to 68RPM x 50Hz - 19Nm at 0.94 Service Factor. Lubrication: Synthetic Oil, sealed for life and maintenance-free Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 90mm flange with 4 x M5 screws equispaced on 75mm PCD with 60mm register.
