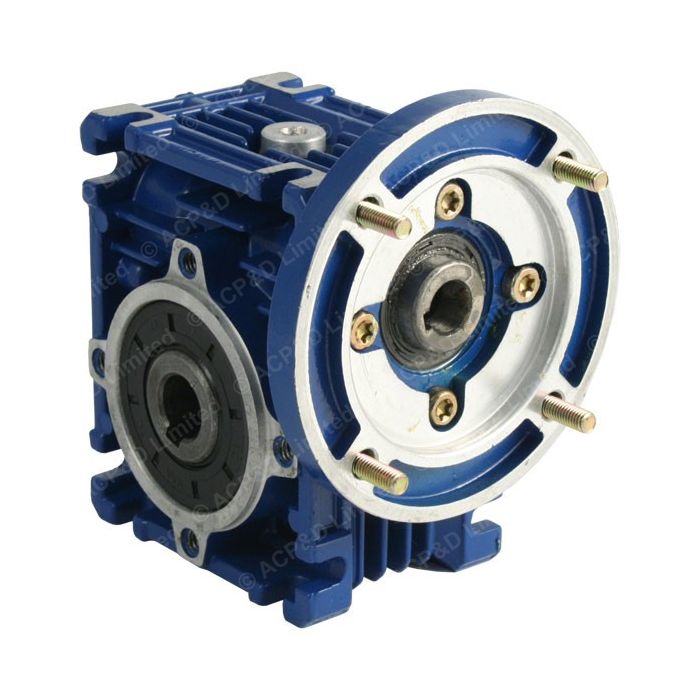

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-25:1-0.18KW-2P-63B14
Specifications
Brand:
TEC Electric Motors
Gearbox Brand:
TEC FCNDK Right Angle Worm Gearbox
Gearbox Type:
Right-angle Worm
Motor Frame:
63
Motor Power:
0.18kW
Gearbox Ratio:
25:1
Output Speed:
108rpm
Maximum Torque Output:
14Nm
Product Details
TEC - 0.18kW x 108RPM 25:1 Right-Angle Worm Gearbox for 2 Pole 63 Frame B14 Motor (motor not included), type: FCNDK30
Ratio: 25:1
Output Speed: 108RPM for Input Speed at 2710RPM (50Hz)
Max Output Torque: 14Nm
Efficiency: 74%
Max Input Power: 0.22kW for 2 pole motor.
Output with 0.18kW 2 Pole Motor:- 0.13kW x 108RPM at 50Hz - 11.7Nm at 1.2 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 90mm flange with 4 x M5 screws equispaced on 75mm PCD with 60mm register.
