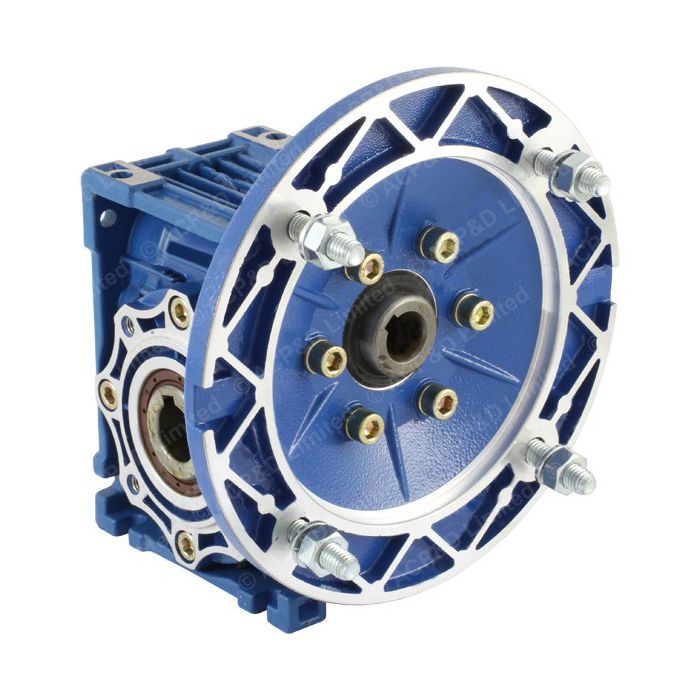

TEC FCNDK Right Angle Worm Gearbox - FCNDK40-40:1-0.37KW-2P-71B5
Specifications
Brand:
TEC Electric Motors
Gearbox Brand:
TEC FCNDK Right Angle Worm Gearbox
Gearbox Type:
Right-angle Worm
Motor Frame:
71
Motor Power:
0.37kW
Gearbox Ratio:
40:1
Output Speed:
68rpm
Maximum Torque Output:
28Nm
Product Details
TEC - 0.37kW x 68RPM 40:1 Right-angle Worm Gearbox for 2 Pole 71 Frame B5 Motor (motor not included), type: FCNDK40
Ratio: 40:1
Output Speed: 68.25RPM for Input Speed at 2730RPM (50Hz)
Max Output Torque: 28Nm
Efficiency: 68%
Max Input Power: 0.3kW for 2 pole motor.
Output with 0.37kW 2 Pole Motor - 0.25kW x 68.25RPM at 50Hz - 35.2Nm at 0.8 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 71 Frame Motor. 14mm bore diameter, 160mm flange with 4 x 9 mm holes equispaced on 130mm PCD with 110mm register.
