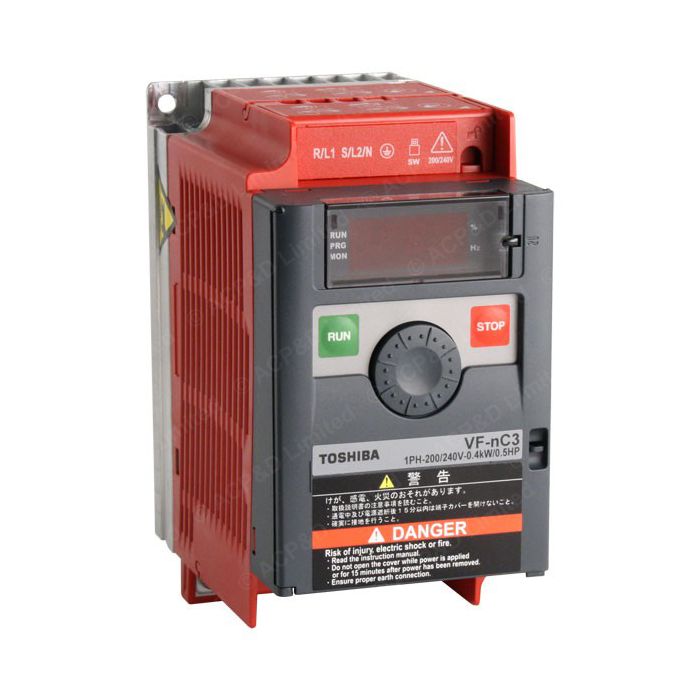

Toshiba VF-nC3 series inverter - VFNC3S-2002PL
Specifications
Brand:
Toshiba
AC Drive Brand:
Toshiba VF-nC3 Series AC Inverter
AC Drive Phase:
Single-phase input
AC Drive Current High Load:
1.4A
AC Drive Power Fan Pump Rating:
0.2kW
AC Drive Voltage:
200-240V, 50/60Hz
Enclosure:
IP20
AC Drive Temp:
Self Cooling
Filter Included:
With Filter
Mounting Type:
Panel mounting
Product Details
Toshiba Tosvert VF-nC3 Series AC Inverter, type: VFNC3S-2002PL, for 400V 3-Ph motor to 1.4A rating. Operates in VxF Control. Converts fixed frequency single phase 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor or Permanent Magnet Motor. Enclosure frame size is A
