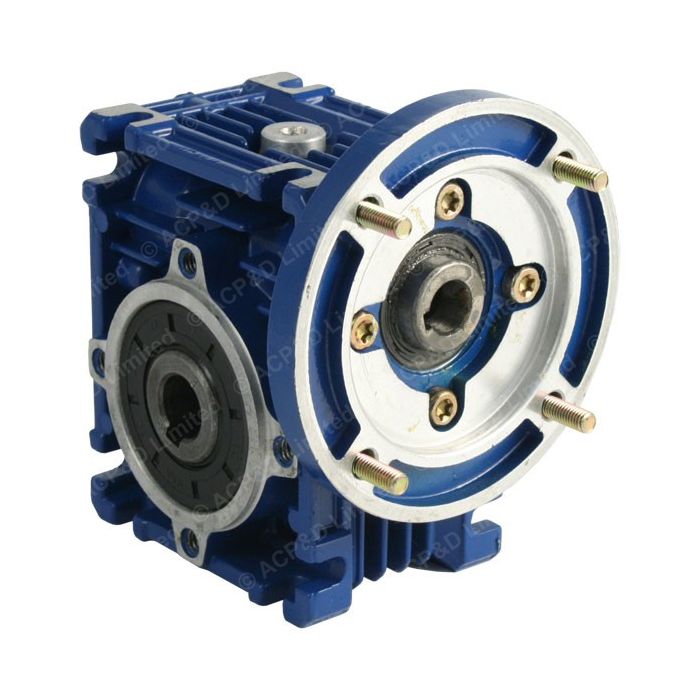

TEC FCNDK Right Angle Worm Gearbox - FCNDK30-30:1-0.12KW-4P-63B14


Brand: TEC Electric Motors
Gearbox Brand: TEC FCNDK Right Angle Worm Gearbox
Gearbox Type: Right-angle Worm
Motor Frame: 63
Second Motor Frame: No
Motor Power: 0.12kW
Gearbox Ratio: 30:1
Output Speed: 45rpm
Maximum Torque Output: 18Nm

Availability: In stock


Product Details

TEC - 0.12kW x 45RPM 30:1 Right-angle Worm Gearbox for 4 Pole 63 Frame B14 Motor (motor not included), type: FCNDK30
Ratio: 30:1
Output Speed: 45RPM for Input Speed at 1350RPM (50Hz)
Max Output Torque: 18Nm
Efficiency: 66%
Max Input Power: 0.13kW for 4 pole motor.
Output with 0.12kW 4 Pole Motor (motor not included), type: 0.08kW x 45RPM at 50Hz - 16.8Nm at 1.07 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 90mm flange with 4 x M5 screws equispaced on 75mm PCD with 60mm register.
